Low Signal Ariel – Works in areas of low signal. So you are Always guaranteed of high quality resolution on your TV.
Digital receiver antenna This antenna is UHF AND VHF signal receive that help your decoder or your digital TV  just connect the antenna to the pole and position it facing the mask signal distributor then connect to the decoder or digital and once the signal if scanned you are ready to receive digital signal clearly.Digital receiver antenna This antenna is UHF AND VHF signal receive that help your decoder or your digital TV  just connect the antenna to the pole and position it facing the mask signal distributor then connect to the decoder or digital and once the signal if scanned you are ready to receive digital signal clearly.Digital receiver antenna This antenna is UHF AND VHF signal receive that help your decoder or your digital TV  just connect the antenna to the pole and position it facing the mask signal distributor then connect to the decoder or digital and once the signal if scanned you are ready to receive digital signal clearly.

1. Assemble Your Gotenna

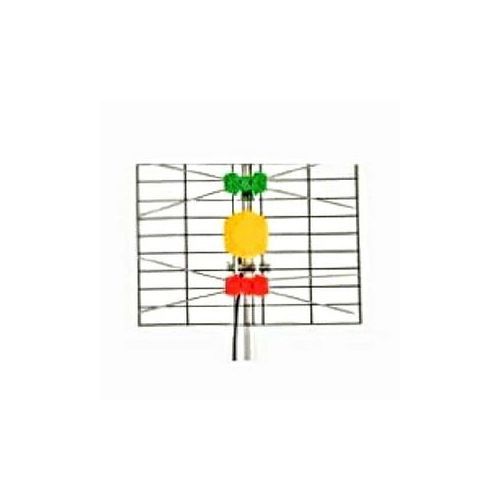

This is what the GOtenna looks like straight out of the box.

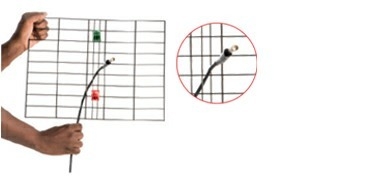

1Pull the cable through the middle of the antenna grid.

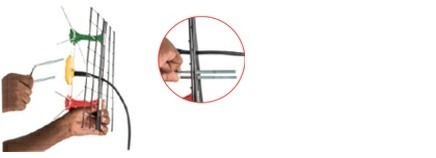

2Screw the cable onto the yellow plastic box of the antenna.

3When secured, slide over the waterproof sleeve.

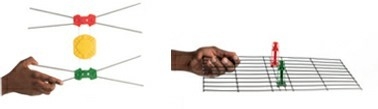

4Clip the green plastic box and the red plastic box on the antenna into the green plastic clip and the red plastic clip on the antenna grid, until they click. (Green connects to green and red connects with red.)

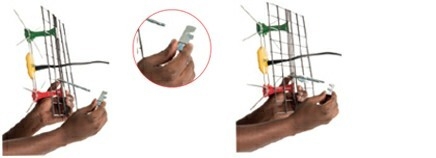

 5Place the U bracket through the middle of the antenna.

6Place the first pole bracket over the U bracket with the flat side against the GOtenna grid.

7Place the outward facing pole bracket attached to the GOtenna grid against an upright pole. Make sure that the down arrow on the yellow box is pointing down and then fasten the second pole bracket around the pole using the wing nuts provided.

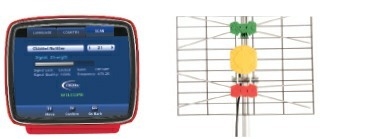

8Find a clear site that has no obstructions between the GOtenna and the signal transmitter. Point the GOtenna towards the transmitter. Slowly move your GOtenna to the left or the right until the strongest signal is found. You will be able to see this on the signal lever bar displayed on your TV. Then fix your GOtenna in its position.

2. Install your decoder

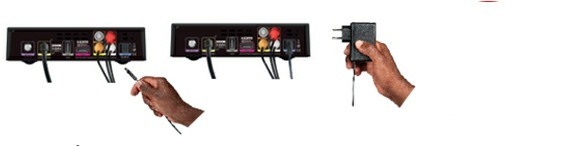

1Connect your decoder to the TV using the Audio and Video (AV) cables provided.

2Connect the GOtenna to the RF IN plug on the decoder. if you have an HDMI cable, connect it instead.

3Connect the power supply unit to the decoder before inserting the other end into the plug point. Then switch on at the wall (GOtv recommends the use of a power surge protector).

 4Switch the TV on and press the AV button on the TV remote control to go to the appropriate AV channel. After 20 seconds the GOtv logo will appear, followed by the set-up screen a few seconds later.

Note: If the GOtv decoder does not complete scanning, it will automatically take you to the signal detection screen. At this point you may need to point the GOtenna in the direction of the GOtv transmitter – and move the GOtenna until the signal is strongest. This is the point where you should permanently fix your GOtenna.

Once you see the GOchannel your decoder is ready for activation.
